Supplied in roadcase.
Features:
2x Parallel NL4 Inputs
700W 15” Driver
Left + Right Stereo Options Available

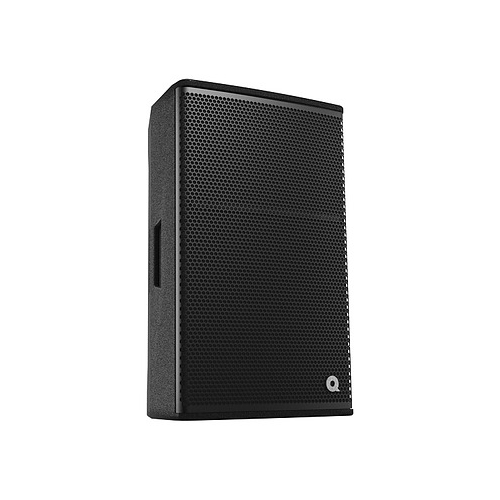

The QM700 is a high powered 15" passive two way multi-purpose loudspeaker built for heavy duty applications in demanding environments.
The QM700 has a number of design innovations, starting with the Quest asymmetrical rotatable wave guide. The driver/wave-guide combination focuses the acoustic energy to provide smooth near field coverage while maximising performance and imaging in the far field, without contributing to room reflections; all done without additional system processing. Pronounced and intelligible vocal clarity in difficult acoustical environments is achieved as both a fold-back monitor or as a front of house system. Further horn rotation can achieve the same result when the QM700 is used horizontally.
The QM700’s are available as mirrored pairs which makes them excellent for minimising interference effect when two or more QM700's are used in a large stage monitor configuration or when a particularly accurate front of house stereo image is desired.
Specifications:
Power Handling 700W program ; 1400W peak
Frequency Response 50-16kHz
Sensitivity 98dB @ 1kHz
Maximum SPL @ 1m 130dB
Impedance 8 ohms
Connections and Wiring 2 x Speakon NL4 - 1+/1- (2+/2- through)
Woofer 15" High Power Woofer
Tweeter 1.4" Ferrite Compression Driver
Directivity Asymmetric +15/-45 ; 45/90 horizontal
Dimensions 725 x 432 x 369.5 mm
Weight 28kg Net
Supplied in roadcase.
Features:
2x Parallel NL4 Inputs
700W 15” Driver
Left + Right Stereo Options Available
The QM700 is a high powered 15" passive two way multi-purpose loudspeaker built for heavy duty applications in demanding environments.
The QM700 has a number of design innovations, starting with the Quest asymmetrical rotatable wave guide. The driver/wave-guide combination focuses the acoustic energy to provide smooth near field coverage while maximising performance and imaging in the far field, without contributing to room reflections; all done without additional system processing. Pronounced and intelligible vocal clarity in difficult acoustical environments is achieved as both a fold-back monitor or as a front of house system. Further horn rotation can achieve the same result when the QM700 is used horizontally.
The QM700’s are available as mirrored pairs which makes them excellent for minimising interference effect when two or more QM700's are used in a large stage monitor configuration or when a particularly accurate front of house stereo image is desired.
Specifications:
Power Handling 700W program ; 1400W peak
Frequency Response 50-16kHz
Sensitivity 98dB @ 1kHz
Maximum SPL @ 1m 130dB
Impedance 8 ohms
Connections and Wiring 2 x Speakon NL4 - 1+/1- (2+/2- through)
Woofer 15" High Power Woofer
Tweeter 1.4" Ferrite Compression Driver
Directivity Asymmetric +15/-45 ; 45/90 horizontal
Dimensions 725 x 432 x 369.5 mm
Weight 28kg Net
