Supplied in Roadcase.
Features:
2x Parallel NL4 Inputs

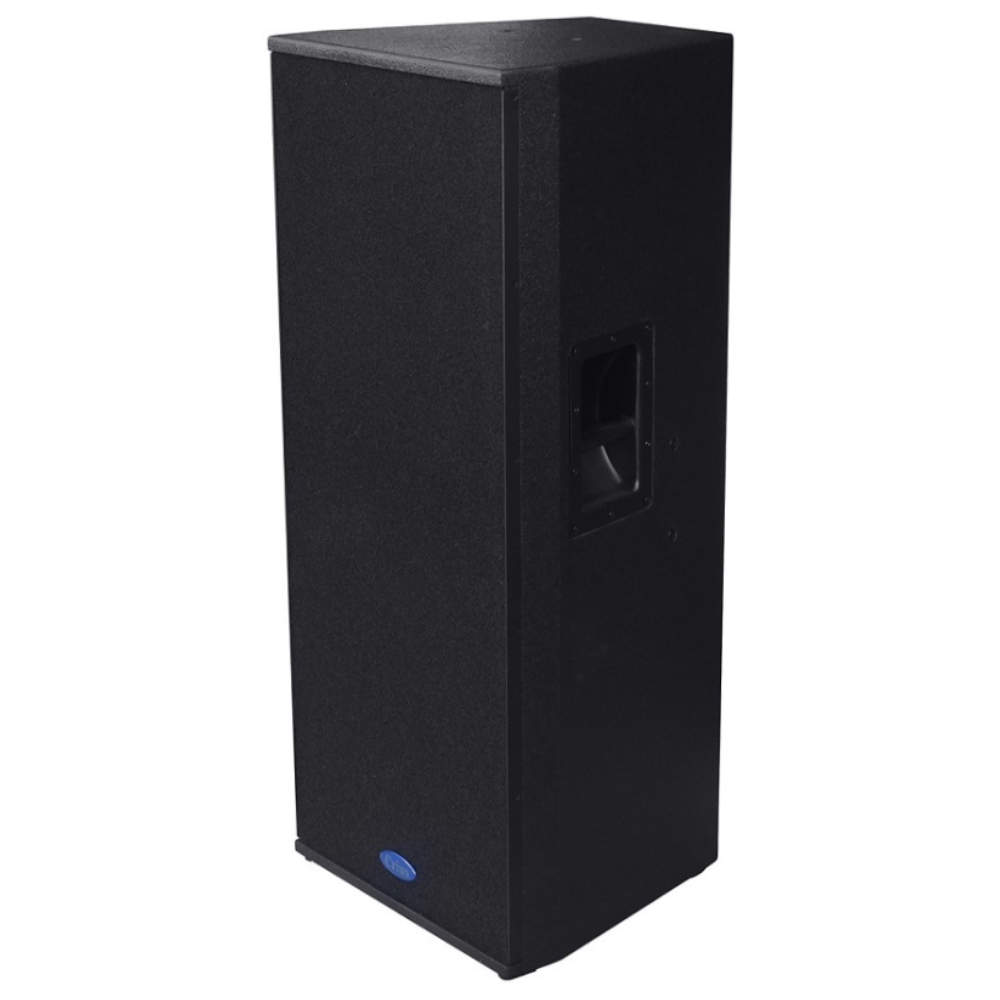

Dual 12” Drivers with Horn
Specifications:
Nominal Impedance (Passive): 4 ohms
Nominal Impedance (Bi-Amp): LF - 4ohms, HF - 8ohms
Sensitivity: Passive: 103dB / 1W / 1M
Bi-Amp:
Low Frequency: 105dB / 1W / 1M
High Frequency: 108dB / 1W / 1M
Max. SPL: 135dB (RMS) 141B (PEAK)
Cover Range (H × V): 100° × 55°
Connectors: 2 × NL4 Socket
Passive/Full Range: 1600watts Program
Bi-Amp: 1900watts Program
Low Frequency: 1600watts Program
High Frequency: 300watts Program
Hanging: 6 × M8 Hanging points,
Wall Mount: 1 × 35mm Bracket Dual Angle seat (additional dual safety rigging points required)
Carry: 2 × Side Handles
Box Material: 18 mm plywood, CNC manufacturing, high density poplar plywood
Paint Processing: Waterproof and wear-resisting paint compound
Un- Packed Dims (cm): 103.5H x 45W x 41D
Net Weight (kg): 42kg
